ZERO SMOG 4V 230V F/G | Weller
WELLER solder fume extraction ZERO SMOG 4V
Unit Price (€ / pc.)
2,100.35 € *
Available: 1 pcs.
Leadtime: 1 Week **
Fume extraction unit, T0053660699N, WELLER

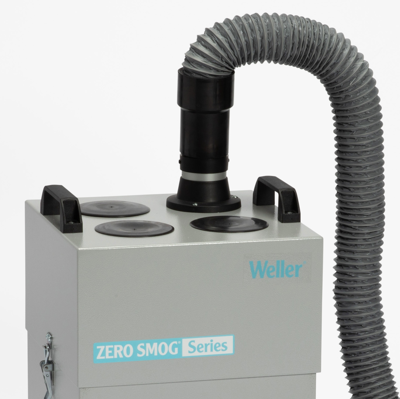

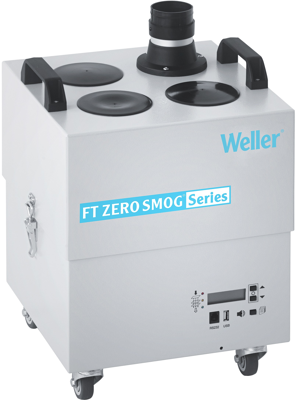

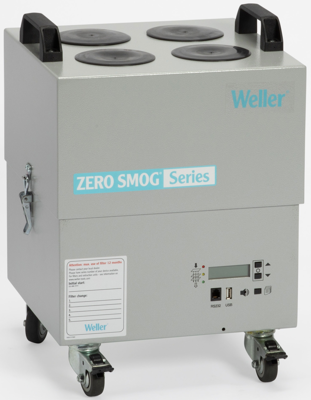

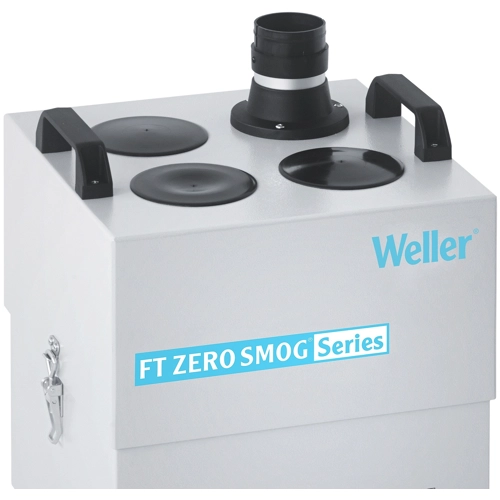

The fume extraction unit zero smog 4 V is easy to install and operate. It is designed for use as a small central system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m³/h. With setting constant flow control the adjustable turbine speed avoiding unnecessary waste of suction power and saving energy.
Features
- Equipped with HEPA H13 particle filter and Fine dust pre-filter F7
- Constant Flow Control (CFC) guarantees automatic air flow regulation for each working place independent of the connected work-places
- Electronic filter control with optical and acoustical filter alarm
- Low noise emission levels for quiet work-space

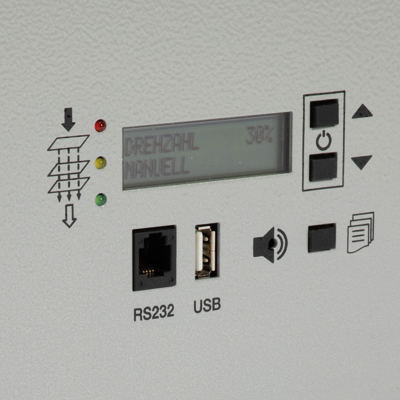

- Remote control via RS 232 port
Technical specifications
| Width | 325 mm | |
| Height | 505 mm | |
| Length | 345 mm | |
| Power | 275 W | |
| Sound pressure level | 48 db | |
| Voltage | 220-240 V | |
| Volume flow | 230 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84213925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
