ZERO SMOG 6V 230V + GAS FILTER | Weller

WELLER extraction unit for adhesive vapors for up to 8 workstations, ZERO SMOG 6V

Order No.: 11L1084
EAN: 4003019428779
MPN:
ZERO SMOG 6V 230V + GAS FILTER
T0053667699N
Series: ZERO SMOG
Weller

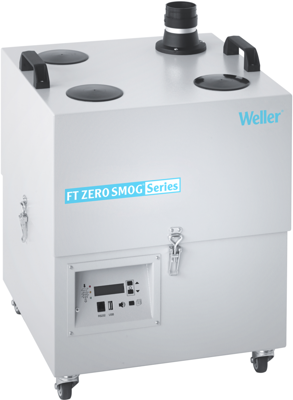

ZERO SMOG 6V 230V + GAS FILTER Weller Fume Extraction
Image may differ
Unit Price (€ / pc.)
4,397.05 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
4,397.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,397.05 €

Fume extraction unit, T0053667699N, WELLER

The fume extraction system zero smog 6 V with gas filter could used to extract adehesive fumes. The unit is user-friendly with quick and simple installation and filter exchange. It has a low noise emission level and is small and convenient to locate within the work area. The high quality components used in the ZS 6 V result in low servicing requirements and long system life. To increase filter lifetime and save on energy, the ZS 6 V is fitted with a constant flow control (CFC) depending on the number of connected workplaces.

Features

  • The Constant Flow Control (CFC) guarantees optimal air flow regulation for each working place independent of the connected workplaces
  • Efficiency test via USB port
  • Electronic filter control with optical and acoustical filter alarm
  • 4 wheels to allow easy movement of the unit
  • Remote control via RS 232 port
Technical specifications
Width 460 mm
Height 665 mm
Length 460 mm
Power 460 W
Sound pressure level 51 db
Voltage 230 V
Volume flow 615 m³/h
Logistics
Country of origin HU
Customs tariff number 84213925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
