T0053445390 | Weller
2-Channel Soldering/desoldering station, Weller T0053445390, 150 W, 230 V
Order No.: 09L7107
EAN: 4099891388553
MPN:
T0053445390
As an alternative, we recommend the following item:
2-Channel Soldering/desoldering station, WT Series, Weller WT 2020M (WT 2M/WMRP/WMRT) 230V F/G, 150 W, 230 V
Order No.: 10L5465
Manufacturer: Weller
per pc. 1,184.05 € *
*incl. VAT plus shipping costs
2-channel soldering/desoldering station, T0053445390, WELLER

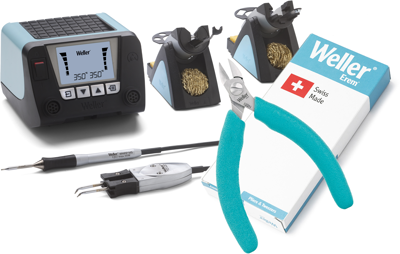

This set contains: WT 2M supply unit, WMRT micro desoldering tweezers, WMRP micro soldering pencil, WSR 203 and WDH 50 safety trays and a free 522N side cutter.WT 2M - 2-channel 150 W high-power supply unit with graphic backlit LCD, intuitive menu structure and automatic standby function that supports 2 users simultaneously.

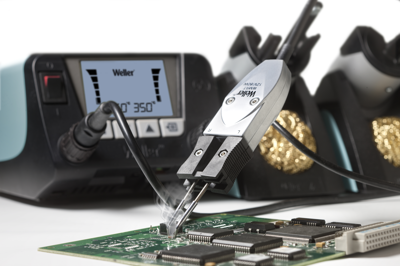

WMRT - Micro desoldering tweezers 2x 40 W, 12 V with extremely short heat-up time and Active Tip system for soldering and desoldering SMD components with high energy requirements, including RTW 2 45° soldering tip set 0.7 x 0.4 mm, 45°.

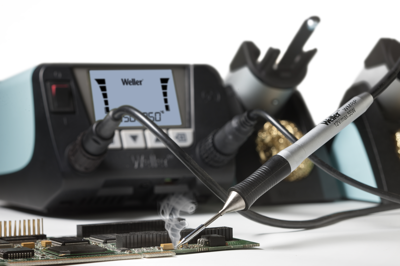

WMRP - Soldering iron 40 W, 12 V with extremely short heat-up time and Active-Tip System for very small components (for use under the microscope) with high energy requirements, including micro standard soldering tip RTM 013 S, chisel Ø 1.3 x 0.4 mm.
WSR 203 - Safety rest for WMRT micro desoldering tweezers.
WDH 50 - Safety rest with Stop+Go for WMRP micro soldering pencil.

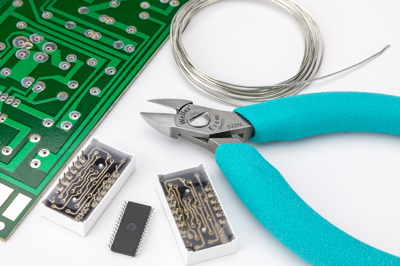

522N - Side cutters with high cutting capacity and oval head, which is the most common head shape.
Technical specifications
| Number of outputs | 2 | |
| Version | Soldering/desoldering station | |
| ESD protection | Yes | |
| Power | 150 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 100 °C | |
| Voltage | 230 V | |
| Connector | type F plug |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85151100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
