DS 113 | Weller

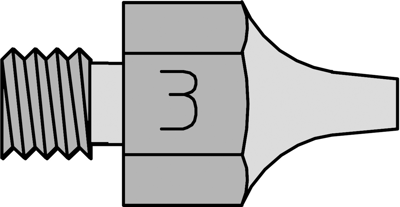

Vacuum nozzle, round shape, Ø 2.5 mm, (L) 18 mm, DS 113
Unit Price (€ / pc.)
16.4220 € *
Available: 11 pcs.
Leadtime: 1 Week **
Total Price:
16.42 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4220 €
5 pcs.
15.6009 €
10 pcs.
14.8155 €
*incl. VAT plus shipping costs
**Subject to prior sale
Vacuum nozzles for desoldering tools DS 22, DS 80 and DSV 80, type Weller DS.
Type HM nozzles with improved heat transfer and optimized geometry are ideal for desoldering SMD pads. Type DS 119 is a suction needle for removing solder bridges with a hot-air pencil. Type DS 120 is used to clean SMD pads.
Technical attributes (type, inner/outside diameter, length): T0051351399, vacuum nozzle DS 113, 1.2/2.5, 18,0 mm
Technical specifications
| Ausführung | Saugdüse | |
| Durchmesser | 2.5 mm | |
| Geeignet für | DS 22, DS 80, DSV 80 | |
| Länge | 18 mm | |
| Spitzentyp | Rundform |
Download
Logistics
| Ursprungsland | BA |
| Zolltarifnummer | 85159080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
