XNT B | Weller

Name: Soldering tip, Chisel shaped, Ø 4.75 mm, (T x L x W) 0.8 x 27 x 2.4 mm, XNT B
Brand: Weller
SKU: 09L4714
Price: 9.52 EUR
Availability: InStock

Soldering tip, Chisel shaped, Ø 4.75 mm, (T x L x W) 0.8 x 27 x 2.4 mm, XNT B

Order No.: 09L4714

EAN: 4099891399009

MPN:

XNT B

T0054485799

Series: XNT

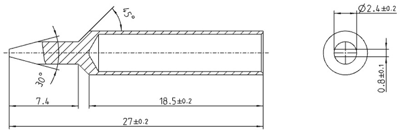

XNT B Weller Soldering tips, desoldering tips and hot air nozzles Image 1

XNT B Weller Soldering tips, desoldering tips and hot air nozzles Image 2

XNT B Weller Soldering tips, desoldering tips and hot air nozzles Image 3

Image may differ

Key Specification:

Version soldering tip

Peak type Chisel shaped

Suitable for WP 65, WXP 65, WTP 90, WXP 90

diameter 4.75 mm

Thickness 0.8 mm

Show 14 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.5200 € *

Available: 9 pcs.

Leadtime: 2 Weeks **

Total Price:

9.52 € *

Price list

Quantity

Price per unit*

1 pcs.

9.5200 €

5 pcs.

9.0440 €

10 pcs.

8.5918 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Suitable for soldering tool WXP 65

Type: T0054485799, XNT B, chisel, 2.4 x 0.8 mm

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Accessory
