XNT CS | Weller

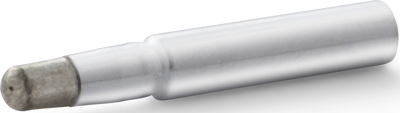

Name: Soldering tip, chisel shaped, Ø 4.75 mm, (T x L x W) 0.8 x 37.5 x 3.2 mm, XNT CS
Brand: Weller
SKU: 03L1882
Price: 8.63 EUR
Availability: InStock

Soldering tip, chisel shaped, Ø 4.75 mm, (T x L x W) 0.8 x 37.5 x 3.2 mm, XNT CS

Order No.: 03L1882

EAN: 4099891392093

MPN:

XNT CS

T0054487099

Series: XNT

XNT CS Weller Soldering tips, desoldering tips and hot air nozzles Image 1

XNT CS Weller Soldering tips, desoldering tips and hot air nozzles Image 2

Image may differ

Key Specification:

Ausführung Lötspitze

Spitzentyp Meißelform

Geeignet für WP 65, WXP 65, WTP 90, WXP 90

Durchmesser 4.75 mm

Dicke 0.8 mm

Show 19 variants

Download Datasheet Technical specifications

Abgekündigt

Unit Price (€ / pc.)

8.6275 € *

Available: 9 pcs.

Leadtime: 1 Week **

Total Price:

8.63 € *

Price list

Quantity

Price per unit*

1 pcs.

8.6275 €

10 pcs.

7.7945 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Soldering Tip, XNT CS, Weller

Soldering tip, chisel shape bent 30°, 3.2 x 0.8 mm

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	BA
Zolltarifnummer	85159080

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory
