XT D 45° | Weller

Name: Soldering tip, chisel shaped, Ø 6 mm, (L) 37 mm, XT D 45°
Brand: Weller
SKU: 09L6550
Price: 18.92 EUR
Availability: InStock

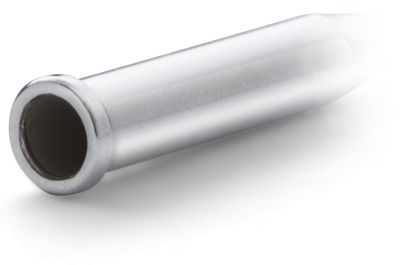

Soldering tip, chisel shaped, Ø 6 mm, (L) 37 mm, XT D 45°

Order No.: 09L6550

EAN: 4099891400552

MPN:

XT D 45°

T0054472199

Series: XT

XT D 45° Weller Soldering tips, desoldering tips and hot air nozzles Image 1

XT D 45° Weller Soldering tips, desoldering tips and hot air nozzles Image 2

Image may differ

Key Specification:

Ausführung Lötspitze

Spitzentyp Meißelform

Geeignet für WP 120, WXP 120

Durchmesser 6 mm

Show 36 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

18.9210 € *

Available: 2 pcs.

Leadtime: 1 Week **

Total Price:

18.92 € *

Price list

Quantity

Price per unit*

1 pcs.

18.9210 €

5 pcs.

17.9809 €

10 pcs.

17.0765 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Type: T0054472100, XT D45, 45°, solar soldering tip, 5.0 mm

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	JP
Zolltarifnummer	85159080

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
