960 000 01 | Werma

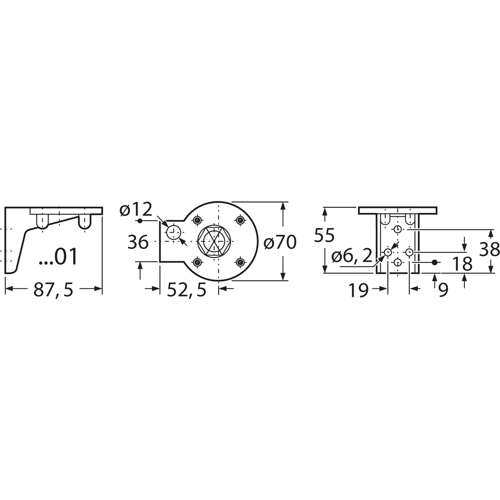

Angle mounting adapter, black, (Ø x L x W x H) 70 x 88 x 70 x 57 mm, for KombiSIGN 50, 960 000 01
Unit Price (€ / pc.)
14.3633 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.36 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3633 €
10 pcs.
12.6497 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding mounting brackets, type 960000.
Including screwed cable gland, especially for aluminum profiles, type 960.000.01 for installation with pedestal and pipe, type 960.000.02 for direct mounting of the connecting elements 840.085.00 or 640.800.00 described above.
Technical attributes (type, version, color, with/without lamp): 960.000.01, pedestal mounting bracket
Technical specifications
| Version | angle mounting adapter | |
| Width | 70 mm | |
| diameter | 70 mm | |
| Colour | black | |
| Suitable for | KombiSIGN 50 | |
| Weight | 57 g | |
| Height | 57 mm | |
| Length | 88 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85318070 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
