109 010 77 | Werma

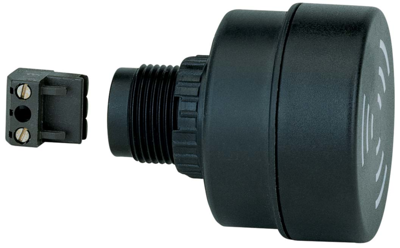

Built-in buzzer, 60 Hz, 80 dB, 115 V AC/DC, 25 mA, black, 109 010 77
Unit Price (€ / pc.)
89.2024 € *
Available: 0 pcs.
Leadtime: On Request **
Acoustic Signal Transmitter, 109 010 77, Werma
Electr. Buzzer EM Pulse tone 115VAC/DC B
FEATURES
- Installation buzzer for the 22.5 mm control panel/switchgear programme
- Easy connection via connector plug
Technical Data
- Resonant frequency: 2100 Hz
- Colour: black
- Sound pressure level: 80 dB
- Installation diameter: 52 mm
Technical specifications
| Version | buzzer | |
| Installation diameter | 22.5 mm | |
| Colour | black | |
| Frequency | 60 Hz | |
| Rated current | 25 mA | |
| Resonance frequency | 2100 Hz | |
| Sound pressure level | 80 db | |
| Voltage | 115 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
