111 000 68 | Werma

Built-in buzzer, 50 Hz, 80 dB, 230 VAC, 20 mA, black, 111 000 68

Order No.: 36M1014
EAN: 4049787025611
MPN:
111 000 68
111.000.68
Series: 111
Werma
111 000 68 Werma Acoustic Signal Transmitters
Image may differ
Unit Price (€ / pc.)
100.6859 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
100.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
100.6859 €

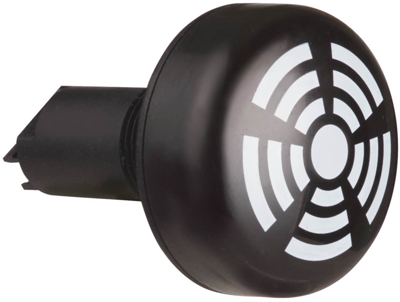

Acoustic Signal Transmitter, 111 000 68, Werma

Electr. Buzzer EM Contin/pulse 230VAC BK

FEATURES

  • Electronic buzzer for the 22.5 mm panel and switch gear programme
  • Simple conneciton via plug connection
  • Positive and negative control logic
  • Continuous or pulse tone can be triggered externally

Technical Data

  • Resonant frequency: 2800 Hz
  • Colour: black
  • Sound pressure level: 80 dB
  • Installation diameter: 50 mm
Technical specifications
Version buzzer
Installation diameter 22.5 mm
Colour black
Frequency 50 Hz
Rated current 20 mA
Resonance frequency 2800 Hz
Sound pressure level 80 db
Voltage 230 VAC
Logistics
Country of origin DE
Customs tariff number 85311095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, Lead titanium zirconium oxide
