114 068 15 | Werma
Built-in buzzer, 90 dB, 24 VDC, 20 mA, 2.4 kHz, black, 114 068 15
Unit Price (€ / pc.)
52.5742 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
52.57 € *
Price list
Quantity
Price per unit*
1 pcs.
52.5742 €
5 pcs.
49.4207 €
15 pcs.
47.5286 €
50 pcs.
45.4223 €
150 pcs.
43.5302 €
*incl. VAT plus shipping costs
**Subject to prior sale

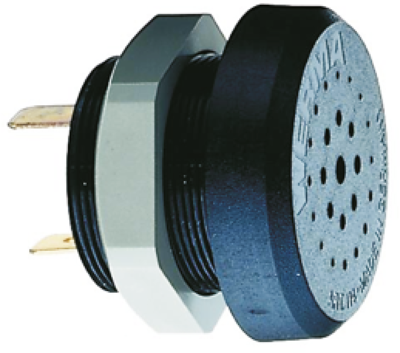

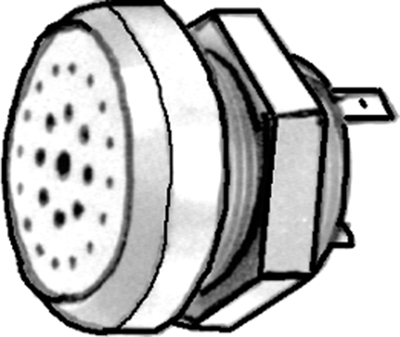

Piezo buzzers, type Werma 114.
For installation from the front in control panels and front panels, with bushing mount M 30 x 1.5, powerful sound. With wide voltage range and low current consumption. Insensitive to humidity, as the electronic components are molded; Rated current: 20 mA. Sound pressure level: approx. 90 dB/1.0 m. Audio frequency: 2400 Hz. Housing: thermoplastic (ABS), impact-resistant, black. Connection: 6.3 x 0.8 tab terminals. Degree of protection: IP 30. Bushing mount M 30 x 1.5. Weight: 50 g.
Technical attributes (type, operating voltage /rated voltage): 11406815, 12 to 30 V/24 VDC

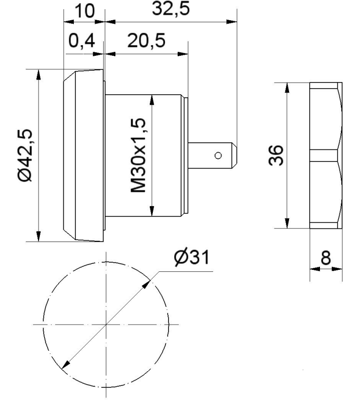

Technical specifications
| Ausführung | Summer | |
| Einbaudurchmesser | 31 mm | |
| Farbe | schwarz | |
| Höhe | 43 mm | |
| max. Übertragungsbereich | 2.4 kHz | |
| Nennstrom | 20 mA | |
| Resonanzfrequenz | 2400 Hz | |
| Schalldruckpegel | 90 db | |
| Spannung | 24 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85311095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei-Titan-Zirkonoxid |
