119 068 15 | Werma

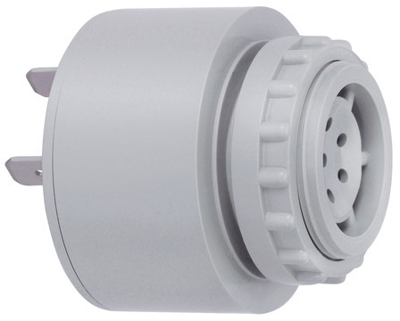

Built-in buzzer, 50 Hz, 90 dB, 24 V AC/DC, 20 mA, 2.4 kHz, gray, 119 068 15
Unit Price (€ / pc.)
71.7451 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
71.75 € *
Price list
Quantity
Price per unit*
1 pcs.
71.7451 €
5 pcs.
67.4373 €
10 pcs.
64.8550 €
25 pcs.
61.9871 €
50 pcs.
59.3929 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electronic circuit, high sound power, low current consumption, for direct M 28 x 1 bulkhead mounting in front panels or switchboards, with molded parts.
Housing: thermoplastic (ABS), impact-resistant, gray
Audio frequency: 2400 Hz
Duty cycle: 100 %
Sound pressure level: approx. 90 dB/1.0 m
Rated current: 20 mA
Operating temperatures: - 20 to +60 °C

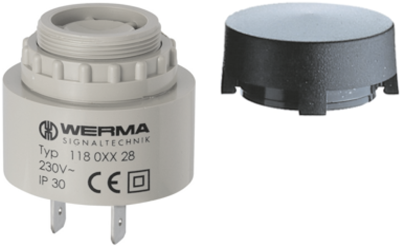

Degree of protection: IP 30, (IP 43 when mounted accordingly. Drip water-protected with additional use of the protective cap (please order separately)
Connection: 6.3 x 0.8 tab terminals
Dimensions: D 43 x 36 mm
Connections: 3 for twq sounds
Weight: 55 g
Type: 118.068.15
Operating voltage: 10 to 30 V
Rated voltage: 24 V AC/DC
Sound mode: intermittent sound
Type: 119.068.15
Technical specifications
| Version | piezo signal transmitter | |
| Installation diameter | 29 mm | |
| Colour | gray | |
| Frequency | 50 Hz | |
| Height | 43 mm | |
| Max. transmission range | 2.4 kHz | |
| Rated current | 20 mA | |
| Resonance frequency | 2400 Hz | |
| Sound pressure level | 90 db | |
| Voltage | 24 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
