570 052 68 | Werma
Electromechanical horn, 50 Hz, 108 dB, 230 VAC, 70 mA, gray, 570 052 68
Unit Price (€ / pc.)
117.0127 € *
Available: 0 pcs.
Leadtime: On Request **

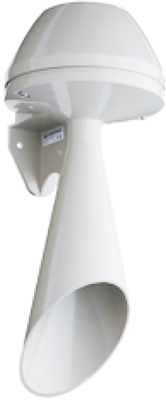

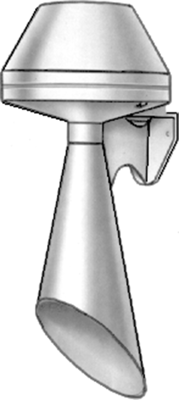

Signal horns, type Werma 570.

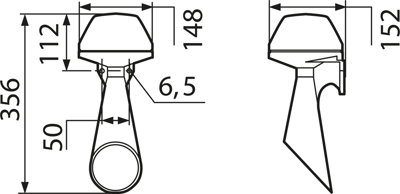

For indoor or outdoor installation, plastic housing made of impact resistant thermoplastic material (ABS), gray; Connection: screw terminals, binding posts, 1.5 mm². Cable entry: rubber squeeze grommet 7.0 to 10 mm. Operating temperatures: –20 to +60 °C. Duty cycle: 100 %. Sound pressure level: approx. 108 dB (A)/1.0 m. Degree of protection: IP 55 to IEC 60529, mounting: with horn facing downward. Dimensions: D 148, H 356 mm. Weight: 1.0 kg.
Technical attributes (type, rated voltage/rated current): 05268, 230 VAC/70 mA
Technical specifications
| Version | signal horn | |
| Colour | gray | |
| Frequency | 50 Hz | |
| Rated current | 70 mA | |
| Sound pressure level | 108 db | |
| Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
