575 000 70 | Werma

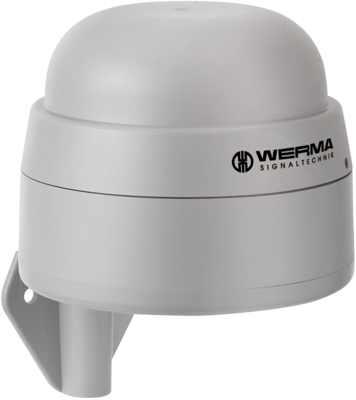

Electronic horn, 50 Hz, 108 dB, 10-48 V AC/DC, 210 mA, gray, 575 000 70

Order No.: 36M1617
EAN: 4049787027288
MPN:
575 000 70
575.000.70
Series: 575
Werma
575 000 70 Werma Acoustic Signal Transmitters
Image may differ
Unit Price (€ / pc.)
234.5609 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
234.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
234.5609 €

Acoustic Signal Transmitter, 575 000 70, Werma

Signal horn WM Contin. tone 10-48VAC/DC

FEATURES

  • Maintenance-free, electronic horn with a long life duration of up to 5,000 hrs
  • Sound output can be set to meet the requirements of the application up to 108 dB
  • Available with and without trumpet
  • Integrated bracket for simple wall mounting without additonal accessoriers

Technical Data

  • Resonant frequency: 110 Hz
  • Colour: gray
  • Sound pressure level: 108 dB
Technical specifications
Version signal horn
Colour gray
Frequency 50 Hz
Rated current 210 mA
Resonance frequency 110 Hz
Sound pressure level 108 db
Voltage 10-48 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85311095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, Lead titanium zirconium oxide, Imidazolidine-2-thione (2-imidazoline-2-thiol)
