584 000 75 | Werma

Electronic small horn, 50 Hz, 98 dB, 24 V AC/DC, 80 mA, gray, 584 000 75

Order No.: 32M520
EAN: 4099891541088
MPN:
584 000 75
584.000.75
Series: 584

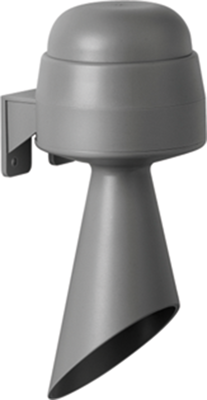

584 000 75 Werma Acoustic Signal Transmitters Image 1

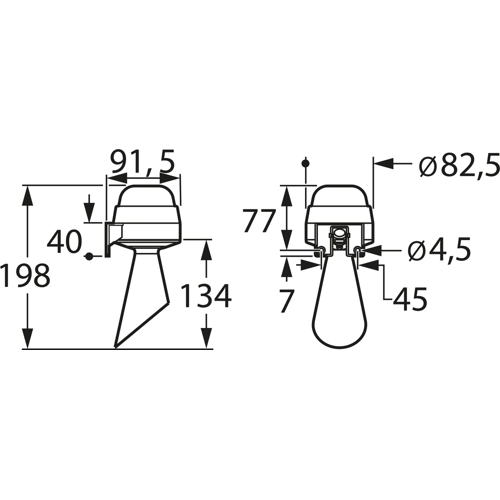

584 000 75 Werma Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
81.4436 € *
Available: 2 pcs.
Leadtime: 2 Weeks **
Total Price:
81.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
81.4436 €

Signal horns, type Werma 584.

For bracket mounting, horn facing down; housing: PC, PC/ABS blend, gray, sound pressure level: 98 db. Duty cycle: 100%. Audio frequency: approx. 110 Hz. Degree of protection: IP 65. Operating temperatures: –20 to +50 °C. Useful life: min. 5000 h. Connection: screw terminals max. 1.5 mm². Cable diameter: max. 9.0 mm.

Technical attributes (type, rated voltage, current consumption): 584.000.75, signal horn, 24 V AC/DC, 70 mA

Technical specifications
Version Signalhupe
Colour grau
Frequency 50 Hz
Rated current 80 mA
Resonance frequency 110 Hz
Sound pressure level 98 db
Voltage 24 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85311095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei, Blei-Titan-Zirkonoxid
