239 480 55 | Werma

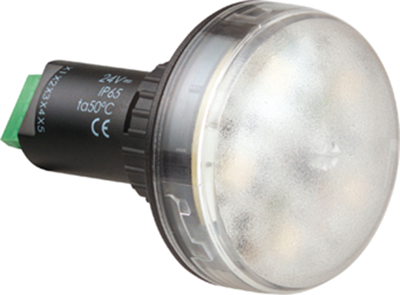

Recessed LED light, Ø 50 mm, blue/green/red/white/yellow, 24 VDC, IP65, 239 480 55
Unit Price (€ / pc.)
170.765 € *
Available: 0 pcs.
Leadtime: On Request **
LED signal beacons, type Werma 239.

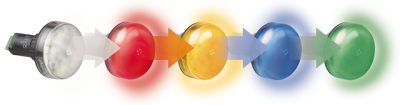

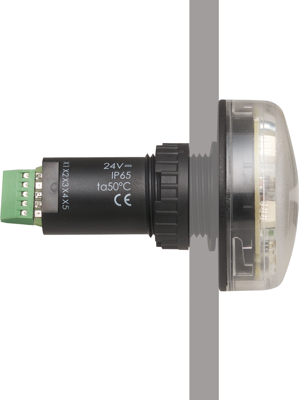

Capable of signaling several states, with five colors, color control via terminals, positive and negative control logic; Voltage: 24 VDC. Current consumption: max. 75 mA. Signal view: LED permanent beacon. For panel mounting. Connection: 0.5 to 1.5 mm². Degree of protection: IP 65. Operating temperatures: –20 to +50 °C.
Type: 239 480 55, LED signal beacon

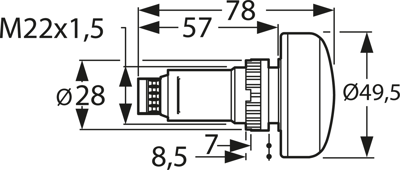

Technical specifications
| Ausführung | LED-Dauerlicht | |
| Durchmesser | 50 mm | |
| Einbaudurchmesser | 20.5 mm | |
| Farbe der Beleuchtung | blau/klar/grün/gelb/rot | |
| Farbe | klar | |
| Höhe | 78 mm | |
| Nennstrom | 75 mA | |
| Schutzart (IP) | IP65 | |
| Spannung | 24 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85311095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
