691 100 55 | Werma
LED signal tower, green/yellow/red, 24 V AC/DC, 691 100 55
Unit Price (€ / pc.)
158.4009 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
158.40 € *
Price list
Quantity
Price per unit*
1 pcs.
158.4009 €
2 pcs.
153.6766 €
5 pcs.
144.4422 €
*incl. VAT plus shipping costs
**Subject to prior sale

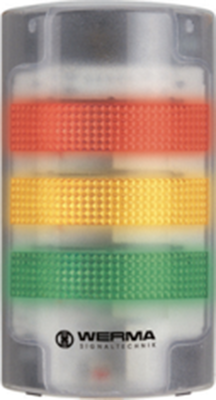

LED signal beacon towers, type Werma FlatSIGN 691.

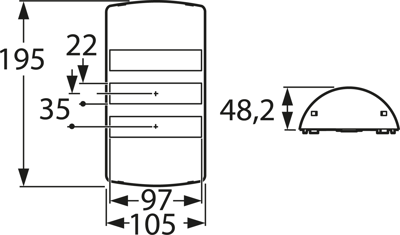

Semicircular design, emitting angle 160°, selectable permanent or flash light operation (red, yellow, green); Material housing bottom shell: PC-ABS, black, housing top shell and dome: PC. Mounting: Wall mounting. Connections: screw terminals, max. 1.5 mm². Current consumption optical system: 30 mA per stage, acoustic system: 30 mA. Dimensions: 195 x 105 x 55 mm.
Technical attributes (type, rated voltage, rated current): 691.100.55, 24 VDC, no acoustic signal
Technical specifications
| Ausführung | LED-Dauer-/Blinklicht | |
| Breite | 45 mm | |
| Farbe der Beleuchtung | grün/gelb/rot | |
| Farbe | klar | |
| Höhe | 195 mm | |
| Länge | 105 mm | |
| Nennstrom | 30 mA | |
| Spannung | 24 V AC/DC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85318070 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
