816 480 53 | Werma
Recessed LED permanent light, Ø 75 mm, 5 VDC, IP65, 816 480 53
Unit Price (€ / pc.)
219.7216 € *
Available: 0 pcs.
Leadtime: On Request **

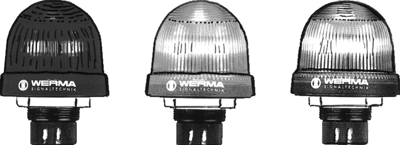

Panel signal and alarm beacons, type Werma 815/816/817.
Protected against vandalism, impact-resistant and waterproof, permanent or flash beacon with LED, with screw terminals, strain relief and touch protection to VDE. The lamps can be replaced quickly from the rear by means of bayonet lock; Panel-mount diameter: 37 mm (Pg 29). Degree of protection: IP 65. Operating temperatures: –20 to +50 °C. Dome: polycarbonate, serrated, transparent.
LED beacons, type Werma 816.
Lamp control directly via USB port, for more than 200,000 colors (RGB LED); Current consumption: max. 500 mA.

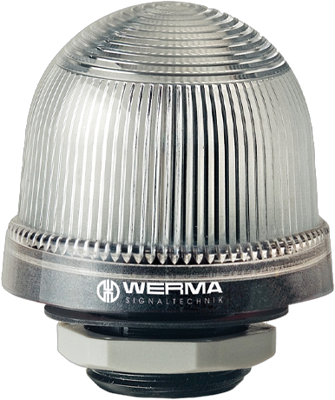

Type: 816.480.53, LED beacon with USB port, 5.0 V, clear
Technical specifications
| Ausführung | LED-Dauerlicht | |

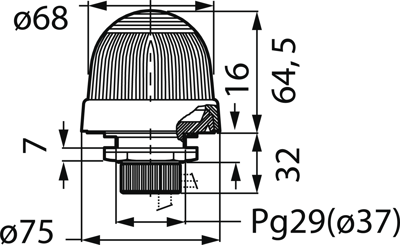

| Durchmesser | 75 mm | |
| Einbaudurchmesser | 37 mm | |
| Farbe | klar | |
| Höhe | 97 mm | |
| Nennstrom | 500 mA | |
| Schutzart (IP) | IP65 | |
| Spannung | 5 VDC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85311095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
