829 120 55 | Werma
LED flashing light, Ø 98 mm, red, 24 VDC, IP65, 829 120 55
Signal and alarm beacons, type Werma 826/828/829.

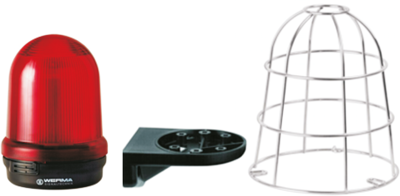

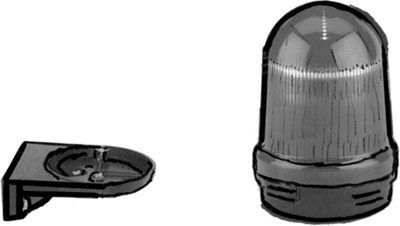

Degree of protection: IP 65 for indoor and outdoor installation, protected against sabotage, the dome can only be removed with a tool, with pressure compensating valve against the accumulation of condensed water, for cable diameters from 7.0 to 11 mm, 2x0.75 mm² to 2x1.5 mm². Flat mount, or wall mount with separately available mounting bracket. Additional protective wire basket for all flat mount units. Case: ABS/PC shutter, polycarbonate dome, transparent. Operating temperatures: –20 to +50 °C.
LED permanent/strobe/omnidirectional or LED-flash beacons with mode selection, type 829.
Useful life: max. 50000 h. Strobe frequency: 1.5 Hz. Flash frequency: 1.5 Hz. Rate of rotation: 180 rev/min.
Technical attributes (type, operating voltage, dome color): 829.120.55, LED strobe beacon, 24 VDC, red
| Ausführung | LED-Doppelblitzlicht | |
| Durchmesser | 98 mm | |
| Farbe der Beleuchtung | rot | |
| Farbe | rot | |
| Höhe | 137 mm | |
| Nennstrom | 100 mA | |
| Schutzart (IP) | IP65 | |
| Spannung | 24 VDC |
| Ursprungsland | DE |
| Zolltarifnummer | 85311095 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
