150 300 55 | Werma

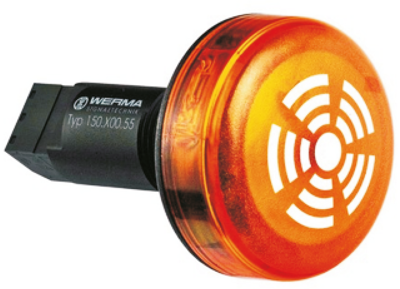

LED buzzer combination, Ø 50 mm, 80 dB, 2800 Hz, yellow, 24 VDC, 150 300 55
Unit Price (€ / pc.)
94.5574 € *
Available: 0 pcs.
Leadtime: On Request **
LED/buzzer combinations, type Werma 150.
Consist of an LED and a buzzer; Features: easy termination by means of plug-in connection, LED permanent beacon, selectable continuous sound, low current consumption. Useful life 50000 h. Mounting thread: M 22 x 1.5. Case: PC/ABS black. Connection: plug with 1.5 mm² screw terminals. Inrush current: 0.5 A. Current consumption: 50 mA. Sound mode: permanent. Audio frequency: 2.8 kHz. Duty cycle: 100 %. Sound pressure level: 80 dB. Degree of protection: IP 65. Operating temperatures: –20 to +50 °C.
Technical attributes (type, operating voltage, shutter color): 15030055, 24 VDC, yellow
Technical specifications
| Version | LED buzzer combination | |
| diameter | 50 mm | |
| Farbe der Beleuchtung | yellow | |
| Colour | yellow | |
| Frequency | 2800 Hz | |

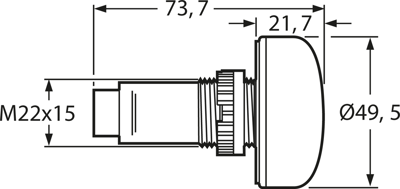

| Height | 74 mm | |
| Rated current | 50 mA | |
| Sound pressure level | 80 db | |
| Degree of protection (IP) | IP65 | |
| Voltage | 24 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85318040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
