434 200 75 | Werma

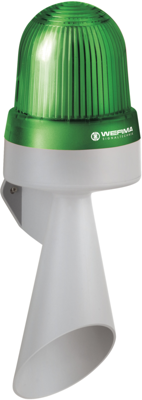

LED steady light / horn combination, Ø 134 mm, 108 dB, 110 Hz, green, 24 V AC/DC, 434 200 75
Unit Price (€ / pc.)
291.431 € *
Available: 0 pcs.
Leadtime: On Request **
Acoustic Signal Transmitter, 434 200 75, Werma
LED Horn WM Contin. tone 24VAC/DC GN
FEATURES
- Maintenance-free, electronic horn with a long life duration of up to 5,000 hrs
- Optical and audible warning can be separately triggered for two stage signalling
- Sound output can be set to meet the requirements of the application
- Integrated bracket for simple wall mounting without additonal accessories
Technical Data
- Resonant frequency: 110 Hz
- Colour: green
- Sound pressure level: 108 dB
- Installation diameter: 134 mm
Technical specifications
| Ausführung | LED-Dauerlicht/ Hupe Kombination | |
| Breite | 134 mm | |
| Durchmesser | 134 mm | |
| Farbe der Beleuchtung | grün | |
| Farbe | grün | |
| Frequenz | 110 Hz | |
| Höhe | 407 mm | |
| Länge | 144 mm | |
| Nennstrom | 405 mA | |
| Schalldruckpegel | 108 db | |
| Schutzart (IP) | IP65 | |
| Spannung | 24 V AC/DC |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85182900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, Blei-Titan-Zirkonoxid, Imidazolidin-2-thion (2-Imidazolin-2-thiol) |
