699 220 75 | Werma

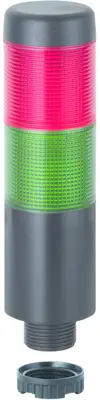

LED signal tower with buzzer, Ø 38 mm, 85 dB, 2900 Hz, green/red, 24 V AC/DC, 699 220 75
Unit Price (€ / pc.)
108.6708 € *
Available: 0 pcs.
Leadtime: On Request **
Acoustic Signal Transmitter, 699 220 75, Werma
K37 plug EM Pulse tone 24VAC/DC GN/RD
FEATURES
- Pre-assembled signal tower with max. 5 tiers with or without buzzer
- LED permanent light
- Available with M12 plug or cable connection
- Also available in metal finish and clear lens
Technical Data
- Resonant frequency: 2.900 Hz
- Colour: green/red
- Sound pressure level: 85 dB
- Installation diameter: 38 mm
Technical specifications
| Version | LED-Signalsäule mit Summer | |
| diameter | 38 mm | |
| Farbe der Beleuchtung | grün/rot | |
| Colour | grün/rot | |
| Frequency | 2900 Hz | |
| Height | 141 mm | |
| Rated current | 95 mA | |
| Sound pressure level | 85 db | |
| Degree of protection (IP) | IP65 | |
| Voltage | 24 V AC/DC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85319000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
