WD10 10K 5% (J) | WIDAP
Wirewound resistor, 10 kΩ, 15 W, ±1 %, WD10 10K 5% (J)
Unit Price (€ / pc.)
2.1063 € *
Available: 286 pcs.
Leadtime: 10 Weeks **
Total Price:
2.11 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1063 €
10 pcs.
1.9516 €
100 pcs.
1.8326 €
500 pcs.
1.7374 €
1000 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire resistor, WD10 10K 5% (J), WIDAP

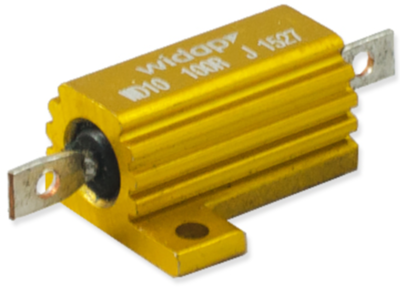

The WD10 10K 5% (J) is a high quality, high stability Aluminium housed power resistor designed for direct heat sink attachment.
Features
- Excellent heat transfers and small dimensions
- Good electrical stability, reliability and mechanically very rigid
- RoHS compliant
Technical specifications
| ohmic resistance | 10 kΩ | |
| Version | high load wire resistor | |
| Design | chassis | |
| Width | 17 mm | |
| Height | 9 mm | |
| Length | 20.1 mm | |
| Power | 15 W | |
| max. operating temperature | 250 °C | |
| min. operating temperature | -25 °C | |
| Assembly | chassis mounting | |
| nominal load capacity without cooling surface | 8 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | 30 ppm/K |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
