WD25 2K2 1% (F) | WIDAP
Wirewound resistor, 2.2 kΩ, 25 W, ±1 %, WD25 2K2 1% (F)
Unit Price (€ / pc.)
2.023 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

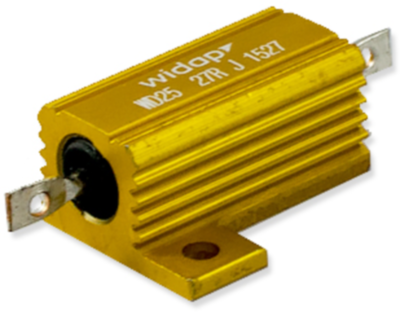

Aluminium housed wire-wound resistor, WD25 2K2 1% (F), WIDAP
The WD25 2K2 1% (F) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.
Features
- Excellent heat transfers and small dimensions
- Custom terminations
- RoHS compliant
Technical specifications
| ohmscher Widerstand | 2.2 kΩ | |
| Ausführung | Hochlast-Drahtwiderstand | |
| Bauform | Chassis | |
| Breite | 28 mm | |
| Höhe | 15 mm | |
| Länge | 27.3 mm | |
| Leistung | 25 W | |
| max. Temperatur | 250 °C | |
| min. Temperatur | -25 °C | |
| Montage | Chassismontage | |
| Nennbelastbarkeit ohne Kühlfläche | 12.5 W | |
| Toleranz | ±1 % | |
| Temperaturkoeffizient | 30 ppm/K |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85332100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
