DCP4I052006JD2KSSD | Wima
MKP film capacitor, 20 µF, ±10 %, 600 V (DC), PP, 27.5 mm, DCP4I052006JD2KSSD
Order No.: 43D8406
EAN: 4099879820143
MPN:
DCP4I052006JD2KSSD
DCLINKMKP420µF/600VDC10%RM27.5
Unit Price (€ / pc.)
15.4938 € *
Available: 159 pcs.
Leadtime: On Request **
Total Price:
15.49 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4938 €
10 pcs.
13.6255 €
50 pcs.
12.7092 €
150 pcs.
12.1499 €
500 pcs.
11.5311 €
*incl. VAT plus shipping costs
**Subject to prior sale

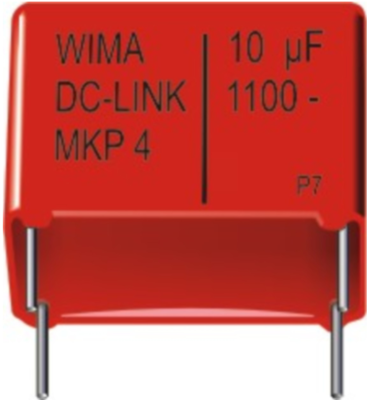

Film capacitor, DCP4I052006JD2KSSD, WIMA
TheDCP4I052006JD2KSSD is a DC-Link capacitor. This product is especially designed for applications in high power converter technology, manufactured with a low loss polypropylene dielectric it shows a higher current carrying capability as well as lower dissipation/self-heating at high frequencies compared to electrolytic capacitors.
Features
- Very high capacitance/volume ratio
- Capacitances up to 400 µF
- Excellent self-healing properties
- Very low dissipation factor
- High reliability
Applications
- Power supplies
- Solar inverters
- E-mobility (battery chargers)
- Motor drive & power train
Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 20 mm | |
| Dielectric material | PP | |
| Height | 39.5 mm | |
| Capacity | 20 µF | |
| Length | 31.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 600 V | |
| Grid | 27.5 mm | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
