MKP4F031002D00KSSD | Wima
MKP film capacitor, 100 nF, ±10 %, 250 V (DC), PP, 7.5 mm, MKP4F031002D00KSSD
Order No.: 43D1072
EAN: 4099879818300
MPN:
MKP4F031002D00KSSD
MKP 4 0.1µF/250VDC 10% RM7.5
Series: MKP 4
Unit Price (€ / pc.)
0.8211 € *
Available: 638 pcs.
Available in 4 Days: 1,573 pcs.
Leadtime: 23 Weeks **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.5117 €
50 pcs.
0.4165 €
250 pcs.
0.3570 €
1000 pcs.
0.3058 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MKP4F031002D00KSSD, WIMA
The MKP4F031002D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

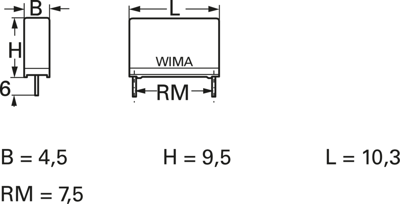

Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 4.5 mm | |
| Dielektrikum | PP | |
| Höhe | 9.5 mm | |
| Kapazität | 100 nF | |
| Länge | 10.3 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 160 V | |
| Nennspannung (DC) | 250 V | |
| Rastermaß | 7.5 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322500 |
| Originalverpackung | Bulk mit 3.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
