MKP4J031004D00KSSD | Wima
MKP film capacitor, 100 nF, ±10 %, 630 V (DC), PP, 15 mm, MKP4J031004D00KSSD
Order No.: 43D5936
EAN: 4099879819031
MPN:
MKP4J031004D00KSSD
MKP 4 0.1µF/630VDC 10% RM15
Series: MKP 4
Unit Price (€ / pc.)
0.6545 € *
Available: 343 pcs.
Available in 4 Days: 1,409 pcs.
Leadtime: 23 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
25 pcs.
0.5236 €
100 pcs.
0.4403 €
250 pcs.
0.3808 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MKP4J031004D00KSSD, WIMA
The MKP4J031004D00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Very low dissipation factor
- Negative capacitance change versus temperature
- Very low dielectric absorption
Applications
- Sample and hold
- Timing
- Oscillating circuits
- High frequency coupling and decoupling

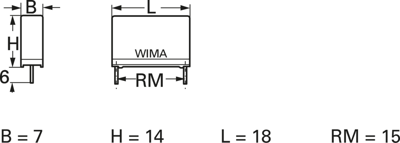

Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 7 mm | |
| Dielektrikum | PP | |
| Höhe | 14 mm | |
| Kapazität | 100 nF | |
| Länge | 18 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 280 V | |
| Nennspannung (DC) | 630 V | |
| Rastermaß | 15 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322500 |
| Originalverpackung | Bulk mit 1.600 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
