MKS0C022200B00KSSD | Wima

MKS film capacitor, 22 nF, ±10 %, 63 V (DC), PET, 2.5 mm, MKS0C022200B00KSSD

Order No.: 42D136
EAN: 4099879816511
MPN:
MKS0C022200B00KSSD
MKS 02 0.022µF/63VDC 10% RM2.5
Series: MKS 02
Wima
MKS0C022200B00KSSD Wima Film Capacitors Image 1
MKS0C022200B00KSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Available: 120 pcs.
Available in 4 Days: 1,761 pcs.
Leadtime: 23 Weeks **
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.3689 €
100 pcs.
0.3094 €
500 pcs.
0.2737 €
1000 pcs.
0.2618 €
*incl. VAT plus shipping costs
**Subject to prior sale

Film capacitor, MKS0C022200B00KSSD, WIMA

The MKS0C022200B00KSSD is a miniature capacitor. This product is contacted at the end surfaces and have very low self-inductance due to the small pin spacing of the capacitor and its fully contacted electrodes, the pulse and current loading capacities basically increase, the smaller the Pitch can be designed, because - provided that the thickness of the film is the same - a longer band length is needed to achieve a particular capacitance value.

Features

  • High volume/capacitance ratio and reduced base
  • Pitch 2.5 mm
  • Self-healing
  • Vacuum-deposited
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing

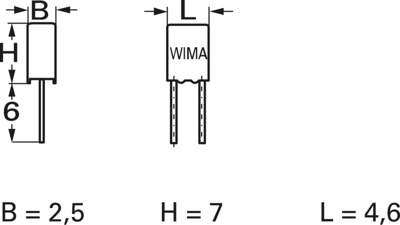

Technical specifications
Number of pins 2
Design radial
Width 2.5 mm
Dielectric material PET
Height 7 mm
Capacity 22 nF
Length 4.6 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Grid 2.5 mm
Tolerance ±10 %
Logistics
Country of origin DE
Customs tariff number 85322500
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
