MKS2D041001K00KSSD | Wima
MKS film capacitor, 1 µF, ±10 %, 100 V (DC), PET, 5 mm, MKS2D041001K00KSSD
Order No.: 42D364
EAN: 4099879816931
MPN:
MKS2D041001K00KSSD
MKS 2 1.0µF/100VDC 10% RM5
Series: MKS 2
Unit Price (€ / pc.)
1.1067 € *
Available: 462 pcs.
Next delivery: 1,000 pcs. on 2025-05-19
Available in 4 Days: 1,314 pcs.
Leadtime: 23 Weeks **
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1067 €
10 pcs.
0.6902 €
50 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MKS2D041001K00KSSD, WIMA
The MKS2D041001K00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

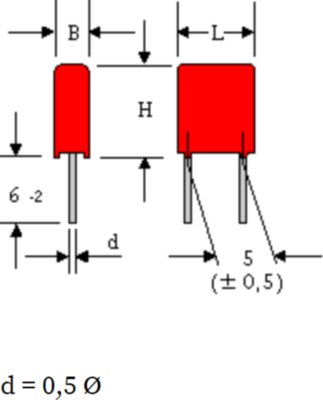

Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 7.2 mm | |
| Dielektrikum | PET | |
| Höhe | 13 mm | |
| Kapazität | 1 µF | |
| Länge | 7.2 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 63 V | |
| Nennspannung (DC) | 100 V | |
| Rastermaß | 5 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322500 |
| Originalverpackung | Bulk mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
