MKS4C031002A00KSSD | Wima

MKS film capacitor, 100 nF, ±10 %, 63 V (DC), PET, 7.5 mm, MKS4C031002A00KSSD

Order No.: 42D938
EAN: 4099879817990
MPN:
MKS4C031002A00KSSD
MKS 4 0.1µF/63VDC 10% RM7.5
Series: MKS 4
Wima
MKS4C031002A00KSSD Wima Film Capacitors Image 1
MKS4C031002A00KSSD Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available: 110 pcs.
Available in 4 Days: 5,295 pcs.
Leadtime: 23 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
10 pcs.
0.2499 €
100 pcs.
0.2142 €
500 pcs.
0.1904 €
1000 pcs.
0.1666 €
*incl. VAT plus shipping costs
**Subject to prior sale

Film capacitor, MKS4C031002A00KSSD, WIMA

The MKS4C031002A00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing

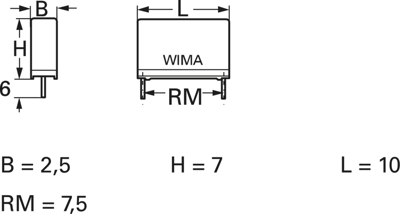

Technical specifications
Number of pins 2
Design radial
Width 2.5 mm
Dielectric material PET
Height 7 mm
Capacity 100 nF
Length 10 mm
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Grid 7.5 mm
Tolerance ±10 %
Logistics
Country of origin DE
Customs tariff number 85322500
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
