MKS4D031002A00KC00 | Wima

MKS film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, MKS4D031002A00KC00

Order No.: 49D3110
EAN: 4099879857293
MPN:
MKS4D031002A00KC00
MKS 4 0.1 µF 100 VDC
Series: MKS 4
MKS4D031002A00KC00 Wima Film Capacitors Image 1
MKS4D031002A00KC00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available: 1,072 pcs.
Available in 4 Days: 4,506 pcs.
Leadtime: 23 Weeks **
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4760 €
50 pcs.
0.3451 €
250 pcs.
0.2832 €
1000 pcs.
0.2428 €
2500 pcs.
0.2118 €
*incl. VAT plus shipping costs
**Subject to prior sale

Film capacitor, MKS4D031002A00KC00, WIMA

The MKS4D031002A00KC00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing

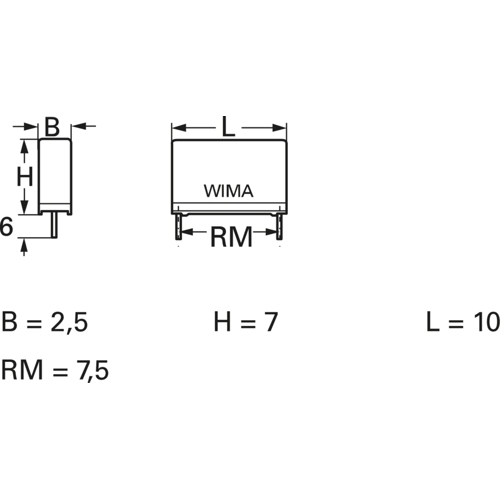

Technical specifications
Anzahl der Pins 2
Bauform radial
Breite 2.5 mm
Dielektrikum PET
Höhe 7 mm
Kapazität 100 nF
Länge 10 mm
max. Temperatur 125 °C
min. Temperatur -55 °C
Nennspannung (AC) 63 V
Nennspannung (DC) 100 V
Rastermaß 7.5 mm
Toleranz ±10 %
Logistics
Ursprungsland DE
Zolltarifnummer 85322500
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
