MKS4F021002B00KSSD | Wima
MKS film capacitor, 10 nF, ±10 %, 250 V (DC), PET, 7.5 mm, MKS4F021002B00KSSD
Order No.: 42D970
EAN: 4099879818133
MPN:
MKS4F021002B00KSSD
MKS 4 0.01µF/250VDC 10% RM7.5
Series: MKS 4
Unit Price (€ / pc.)
0.6664 € *
Available: 2,831 pcs.
Available in 4 Days: 4,794 pcs.
Leadtime: 23 Weeks **
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.4165 €
50 pcs.
0.2987 €
250 pcs.
0.2487 €
1000 pcs.
0.2130 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MKS4F021002B00KSSD, WIMA
The MKS4F021002B00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

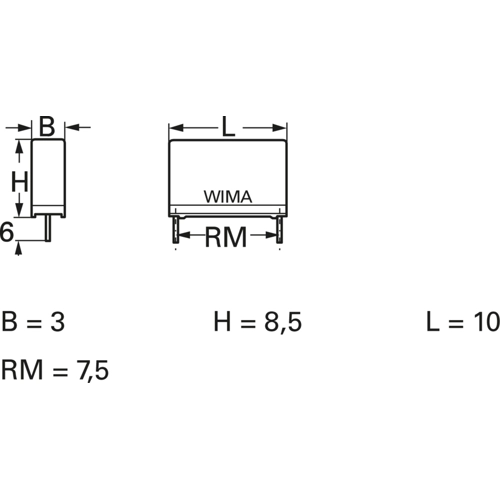

Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 3 mm | |
| Dielektrikum | PET | |
| Höhe | 8.5 mm | |
| Kapazität | 10 nF | |
| Länge | 10 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 160 V | |
| Nennspannung (DC) | 250 V | |
| Rastermaß | 7.5 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322500 |
| Originalverpackung | Bulk mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
