MKS4G023303C00KSSD | Wima
MKS film capacitor, 33 nF, ±10 %, 400 V (DC), PET, 10 mm, MKS4G023303C00KSSD
Order No.: 43D346
EAN: 4099879818591
MPN:
MKS4G023303C00KSSD
MKS 4 0.033µF/400VDC 10% RM10
Series: MKS 4
Unit Price (€ / pc.)
0.4522 € *
Available: 3,100 pcs.
Available in 4 Days: 2,771 pcs.
Leadtime: 23 Weeks **
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4522 €
50 pcs.
0.3213 €
250 pcs.
0.2666 €
1000 pcs.
0.2297 €
2500 pcs.
0.1999 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MKS4G023303C00KSSD, WIMA
The MKS4G023303C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

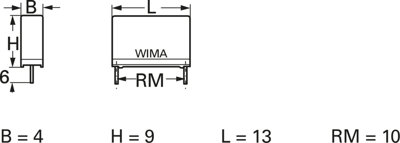

Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 4 mm | |
| Dielectric material | PET | |
| Height | 9 mm | |
| Capacity | 33 nF | |
| Length | 13 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 200 V | |
| Rated voltage (DC) | 400 V | |
| Grid | 10 mm | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
