MKS4G041006B00MD00 | Wima

MKS film capacitor, 1 µF, ±20 %, 400 V (DC), PET, 27.5 mm, MKS4G041006B00MD00

Order No.: 49D5141
EAN: 4099879857446
MPN:
MKS4G041006B00MD00
MKS 4 1.0 µF 400 VDC
Series: MKS 4

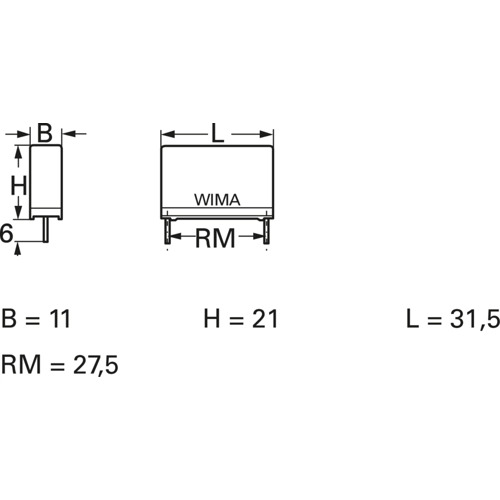

MKS4G041006B00MD00 Wima Film Capacitors Image 1
MKS4G041006B00MD00 Wima Film Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.6303 € *
Available: 301 pcs.
Available in 4 Days: 1,750 pcs.
Leadtime: 23 Weeks **
Total Price:
16.30 € *
Price list
Quantity
Price per unit*
10 pcs.
1.6303 €
50 pcs.
1.4399 €
250 pcs.
1.2376 €
1000 pcs.
1.0829 €
2500 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale

Film capacitor, MKS4G041006B00MD00, WIMA

The MKS4G041006B00MD00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.

Features

  • High volume/capacitance ratio
  • Self-healing
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Anzahl der Pins 2
Bauform radial
Breite 11 mm
Dielektrikum PET
Höhe 21 mm
Kapazität 1 µF
Länge 31.5 mm
max. Temperatur 125 °C
min. Temperatur -55 °C
Nennspannung (AC) 200 V
Nennspannung (DC) 400 V
Rastermaß 27.5 mm
Toleranz ±20 %
Logistics
Ursprungsland DE
Zolltarifnummer 85322500
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
