MKS4J022203C00KD00 | Wima
MKS film capacitor, 22 nF, ±10 %, 630 V (DC), PET, 10 mm, MKS4J022203C00KD00
Unit Price (€ / pc.)
0.2844 € *
Available: 0 pcs.
Available in 4 Days: 5,800 pcs.
Leadtime: 23 Weeks **
Film capacitor, MKS4J022203C00KD00, WIMA
The MKS4J022203C00KD00 is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

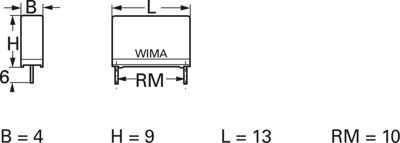

Technical specifications
| Anzahl der Pins | 2 | |
| Bauform | radial | |
| Breite | 4 mm | |
| Dielektrikum | PET | |
| Höhe | 9 mm | |
| Kapazität | 22 nF | |
| Länge | 13 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 400 V | |
| Nennspannung (DC) | 630 V | |
| Rastermaß | 10 mm | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85322500 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
