MKS4O114703C00KSSD | Wima
MKS film capacitor, 4.7 nF, ±10 %, 1 kV (DC), PET, 10 mm, MKS4O114703C00KSSD
Order No.: 43D3990
EAN: 4099879818713
MPN:
MKS4O114703C00KSSD
MKS 4 4700PF/1000VDC 10% RM10
Series: MKS 4
Unit Price (€ / pc.)
0.7021 € *
Available: 1,028 pcs.
Available in 4 Days: 4,937 pcs.
Leadtime: 23 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.4403 €
50 pcs.
0.3070 €
250 pcs.
0.2594 €
1000 pcs.
0.2237 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MKS4O114703C00KSSD, WIMA
The MKS4O114703C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

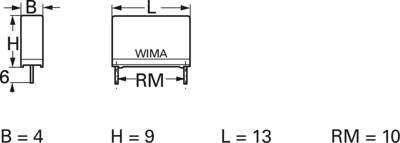

Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 4 mm | |
| Dielectric material | PET | |
| Height | 9 mm | |
| Capacity | 4.7 nF | |
| Length | 13 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 400 V | |
| Rated voltage (DC) | 1 kV | |
| Grid | 10 mm | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk mit 3.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
