MPY20W2100FC00MSSD | Wima

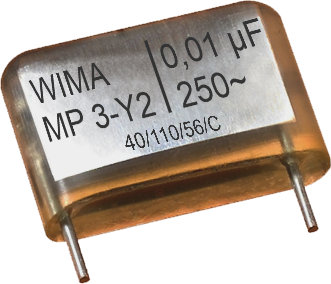

MP suppression capacitor, 10 nF, ±20 %, 1 kV (DC), MP, 15 mm, MPY20W2100FC00MSSD
Order No.: 70D7062
EAN: 4099879863089
MPN:
MPY20W2100FC00MSSD
MP3-Y20.01µF/250VAC20%FVRM15
Series: MP 3-Y2
Unit Price (€ / pc.)
1.9635 € *
Available: 478 pcs.
Available in 4 Days: 1,278 pcs.
Leadtime: 23 Weeks **
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
10 pcs.
1.2257 €
50 pcs.
1.0829 €
250 pcs.
0.9401 €
1000 pcs.
0.8211 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, MPY20W2100FC00MSSD, WIMA
The MPY20W2100FC00MSSD is a RFI capacitor connected between phase and neutral or phase and phase conductors. This product is resin impregnated under vacuum and encapsulated with self-extinguishing cast resin,the metallized paper is neither actively nor passively flammable.
Features
- Particularly high reliability against active and passive flammability
- Excellent self-healing as well as high voltage strength
- High degree of interference suppression due to good attenuation and low ESR
- Self-extinguishing epoxy resin, UL 94 V-0, metal foil
- Tinned wire
Applications
- Capacitors connected to the mains between phase or neutral and earthed casing
- By-passing of the basic or supplementary insulation, pulse peak voltage < 5 kV
Technical specifications
| Number of pins | 2 | |
| Design | radial | |
| Width | 5 mm | |
| Dielectric material | MP | |
| Interference suppression class | Y2 | |
| Height | 13 mm | |
| Capacity | 10 nF | |
| Length | 19 mm | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 1 kV | |
| Grid | 15 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
