SMDTC03100KA00MP00 | Wima
Film capacitor, 100 nF, ±20 %, 63 V (DC), PET, SMDTC03100KA00MP00
Order No.: 41D4224
EAN: 4099879816252
MPN:
SMDTC03100KA00MP00
SMD1812PET 0,1UF/63V 20%
Series: SMD-PET
Unit Price (€ / pc.)
0.8211 € *
Available: 110 pcs.
Available in 4 Days: 2,800 pcs.
Leadtime: 23 Weeks **
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.8211 €
50 pcs.
0.7259 €
250 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Film capacitor, SMDTC03100KA00MP00, WIMA
The SMDTC03100KA00MP00 is a SMD capacitor. This product is a safe protection of the capacitor element against mechanical and thermal stresses during processing and operation.
Features
- Self-healing
- Suitable for lead-free soldering
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case, UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

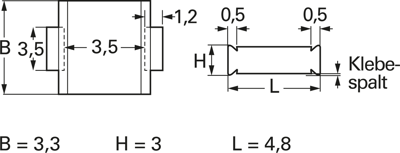

Technical specifications
| Number of pins | 2 | |
| Design | SMD 1812 | |
| Width | 3.3 mm | |
| Dielectric material | PET | |
| Height | 3 mm | |
| Capacity | 100 nF | |
| Length | 4.8 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 40 V | |
| Rated voltage (DC) | 63 V | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
