SMDTC03100QA00MP00 | Wima

Film capacitor, 100 nF, ±5 %, 63 V (DC), PET, SMDTC03100QA00MP00

Order No.: 41D4324
EAN: 4099879816351
MPN:
SMDTC03100QA00MP00
SMD2200PET 0,1UF/63V 20%
Series: SMD-PET
Wima

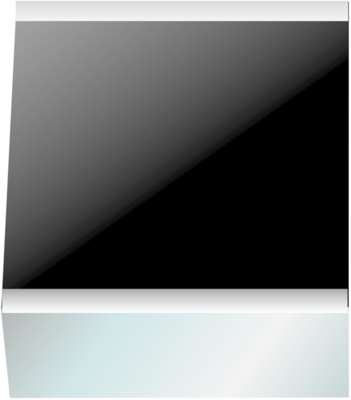

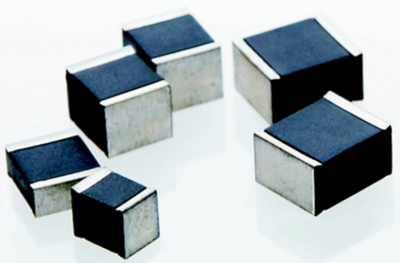

SMDTC03100QA00MP00 Wima Film Capacitors Image 1
SMDTC03100QA00MP00 Wima Film Capacitors Image 2
SMDTC03100QA00MP00 Wima Film Capacitors Image 3
Image may differ
Unit Price (€ / pc.)
0.8806 € *
Available: 1,015 pcs.
Leadtime: 23 Weeks **
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.8806 €
50 pcs.
0.7735 €
250 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Film capacitor, SMDTC03100QA00MP00, WIMA

The SMDTC03100QA00MP00 is a SMD capacitor. This product is a safe protection of the capacitor element against mechanical and thermal stresses during processing and operation.

Features

  • Self-healing
  • Suitable for lead-free soldering
  • Vacuum-deposited
  • Tinned wire
  • Solvent-resistant, flame-retardent plastic case, UL 94 V-0

Applications

  • By-pass
  • Blocking
  • Coupling and decoupling
  • Timing
Technical specifications
Number of pins 2

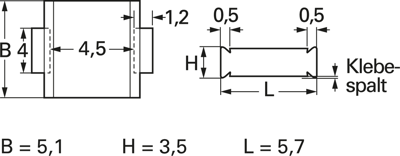

Design SMD 2220
Width 5.1 mm
Dielectric material PET
Height 3.5 mm
Capacity 100 nF
Length 5.7 mm
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage (AC) 40 V
Rated voltage (DC) 63 V
Tolerance ±5 %
Logistics
Country of origin DE
Customs tariff number 85322500
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
