SMDTD02220QA00MP00 | Wima
Film capacitor, 22 nF, ±20 %, 100 V (DC), PET, SMDTD02220QA00MP00
Order No.: 41D4366
EAN: 4099879816382
MPN:
SMDTD02220QA00MP00
SMD2220PET 0,022/100V 20%
Series: SMD-PET
Unit Price (€ / pc.)
0.7616 € *
Available: 668 pcs.
Leadtime: 23 Weeks **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7616 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

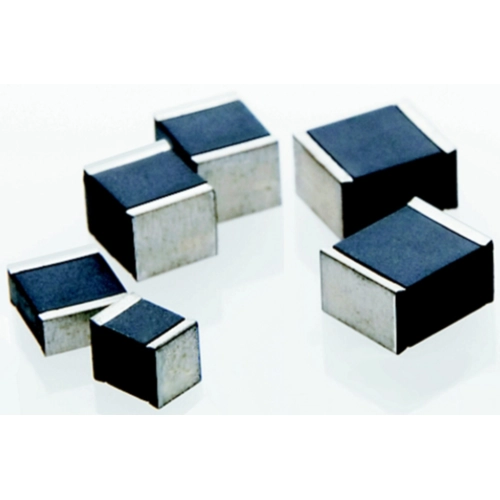

Film capacitor, SMDTD02220QA00MP00, WIMA
The SMDTD02220QA00MP00 is a SMD capacitor. This product is a safe protection of the capacitor element against mechanical and thermal stresses during processing and operation.
Features
- Self-healing
- Suitable for lead-free soldering
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case, UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

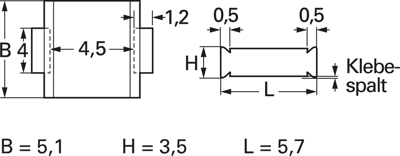

Technical specifications
| Number of pins | 2 | |
| Design | SMD 2220 | |
| Width | 5.1 mm | |
| Dielectric material | PET | |
| Height | 3.5 mm | |
| Capacity | 22 nF | |
| Length | 5.7 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 63 V | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322500 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
