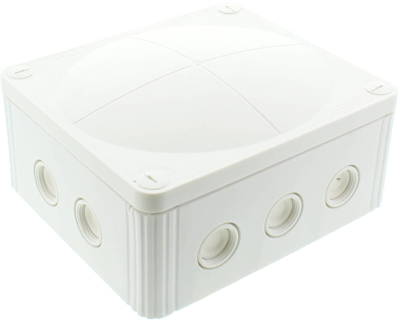

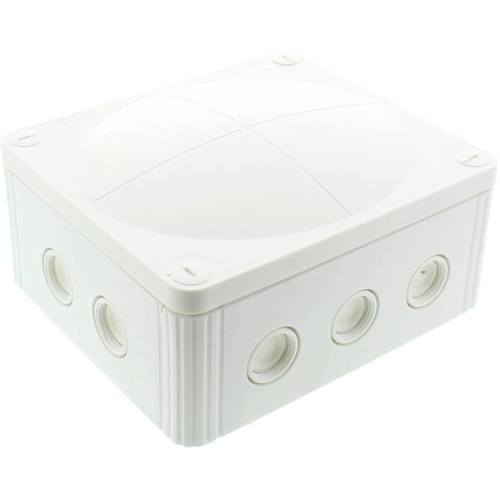

Junction box, 10101461, WISKA
COMBI damp-proof cable junction box made of flame-retardant, halogen-free, reinforced thermoplastic, in 2-component plastic technology combined with puncture membranes made of thermoplastic elastomer. The box with a high degree of protection is weather and UV-resistant, as well as impact-resistant and break-proof. Ideally suited for extreme loads or installation indoors and outdoors. High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis and alcohol. Permanently elastic, self-sealing, lateral puncture membranes in combination with an integrated thread enable both direct cable installation through the membrane and the use of cable glands in M20 without locknuts. The knock-out opening also makes it suitable for cable entries in M25. There are entries in the base with permanently elastic, self-sealing membranes. Captive quick-release cover screws close the box with just a quarter turn. The box is secured through internal openings outside the sealing area. Ideal installation conditions due to enlarged interior and large number of fastening options.
