211114308 | WKK

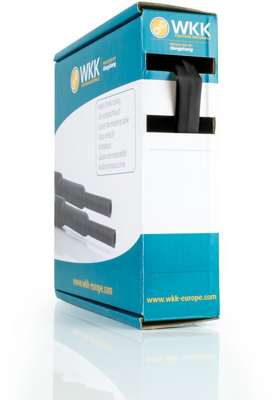

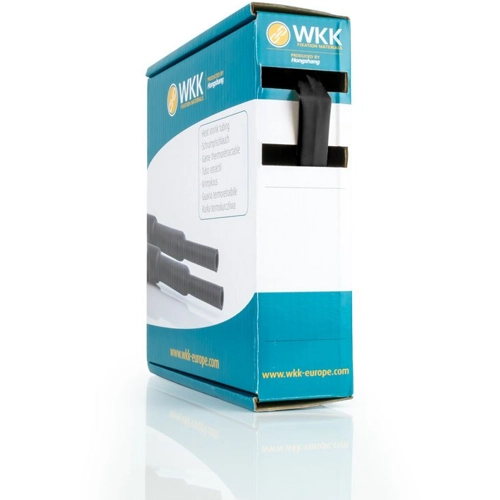

Heatshrink tubing, 2:1, (1.2/0.6 mm), PO, crosslinked, black, 211114308
Order No.: 91F9862
EAN: 4099891965877
MPN:
211114308
Unit Price (€ / pck.)
8.9250 € *
Available: 0 pck.
Leadtime: 3 Weeks **
Total Price:
8.93 € *
Price list
Quantity
Price per unit*
1 pck.
8.9250 €
5 pck.
8.0325 €
10 pck.
7.4375 €
25 pck.
6.8425 €
50 pck.
5.9500 €
*incl. VAT plus shipping costs
**Subject to prior sale
Thin-walled shrink tubing, 211114308, WKK
The thin-walled H-2(Z) heat-shrink tubing is the most commonly used heat-shrink tubing and is used for a wide range of applications. The low shrink temperature, the flexibility of this tubing and the mechanical strength ensure that H-2(Z) is frequently used in the communications, electronics and automotive industries.
Technical specifications
| Farbe | schwarz | |
| Innendurchmesser nach Schrumpfung | 0.6 mm | |
| Innendurchmesser vor Schrumpfung | 1.2 mm | |
| Innenkleber vorhanden | No | |
| Länge | 15 m | |
| Material | PO, vernetzt | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 70 °C | |
| Wanddicke | 0.33 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
