2608011124000 | Würth Elektronik eiSos

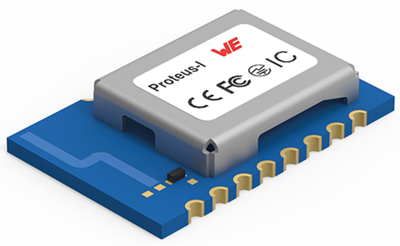

Proteus-I Bluetooth smart 4.2 module BLE RFpad T&R, 2608011124000
Unit Price (€ / pc.)
18.1475 € *
Available: 25 pcs.
Available in 5 Days: 740 pcs.
Leadtime: 10 Weeks **
Total Price:
18.15 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1475 €
10 pcs.
15.9222 €
50 pcs.
14.8750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- 32 bit ARM Cortex-M4 CPU, 512 kB flash memory
- AES HW Encryption
- Automatic Power Management (of each peripheral)
- Bluetooth® LE 4.2 Standard
- Energy-saving: only 5,3 mA @ 0 dBm (Transmit)
- Event driven API
- Integrated antenna
- Max 8 GPIOs available
- Powered by Nordic nRF52832
- Real Timer Clock (RTC)
- Serial data transmission (Smart Serial Profile)
- Ultra small dimensions: 11 x 8 x 2 mm
- Up to 3 dBm output power
Technical specifications
| Version | bluetooth v4.2 | |
| Data transmission rate | 1000000 mb/s | |
| Frequency | 2.48 GHz | |
| IC controller/driver | UART | |
| Rated current | 5.3 mA | |
| Voltage | 1.8 to 3.6 V | |
| Antenna connection | PCB connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85176200 |
| MSL | MSL 4 |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
