2611011024000 | Würth Elektronik eiSos

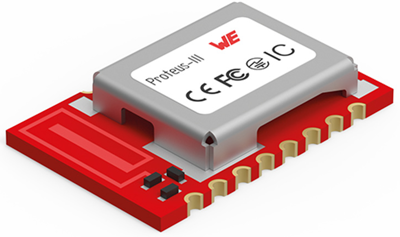

Proteus-III Bluetooth 5.1 module T&R, 2611011024000
Unit Price (€ / pc.)
19.1828 € *
Available: 15 pcs.
Available in 5 Days: 4,219 pcs.
Leadtime: 10 Weeks **
Total Price:
19.18 € *
Price list
Quantity
Price per unit*
1 pcs.
19.1828 €
10 pcs.
16.8266 €
50 pcs.
15.0178 €
100 pcs.
13.6612 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- 6 configurable digital IO pins (local & remote)
- Bluetooth® Low Energy 5.1 Standard with 2 MBit PHY and Coded PHY (long range)
- High throughput mode
- Includes DIS (Device Information Service)
- Nano SIM size
- Nordic Semiconductor SoC nRF52840
- Payload size bis zu 964 byte
- Scan and Connect in long range mode
- Serial data transmission (Smart Serial Profile)
- Smart antenna configuration (2-in-1 Module)
- I²C, UART and SPI digital communication interface
- Up to 6 dBm transmission power
Technical specifications
| Ausführung | Bluetooth v5.1 | |
| Datenübertragungsrate | 2000000 mb/s | |
| Frequenz | 2.48 GHz | |
| IC Controller/Driver | UART | |
| Nennstrom | 18.9 mA | |
| Spannung | 1,8 bis 3,6 V | |
| Antennenanschluss | RF pad |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85176200 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
