885012106009 | Würth Elektronik eiSos

Ceramic capacitor, 680 nF, 10 V (DC), ±20 %, SMD 0603, X5R, 885012106009

Order No.: 59D4632
EAN: 4099889015430
MPN:
885012106009
Series: WCAP-CSGP 0603
Würth Elektronik eiSos
885012106009 Würth Elektronik eiSos Ceramic Capacitors

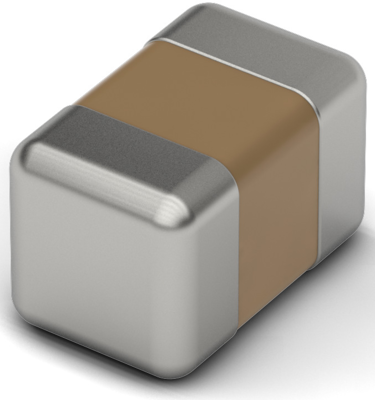

Image may differ
Unit Price (€ / pc.)
0.1131 € *
Available: 4,000 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1131 €
10 pcs.
0.1035 €
100 pcs.
0.0916 €
500 pcs.
0.0809 €
20000 pcs.
0.0129 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
  • High electrical precision and stability ceramic especially for NP0
  • High performance ceramic
  • Operating temperature: -55°C to +125°C for NP0 and X7R, -55°C to +85°C for X5R
  • Temperature coefficient: ±30 ppm/°C
  • Termination: Cu/Ni/Sn
  • Product series for general application
  • Capacity range: 1 pF ‒ 10 µF
  • High electrical precision and stability of the ceramic, especially in the case of NP0
  • High-performance ceramic
  • Minimal aging, especially with NP0
  • Mounting type: SMT chip
  • Recommended soldering methods: Reflow and wave soldering
  • Recommended soldering method: Reflow soldering
  • Voltage range (UR): 6.3 - 100 V(DC)

Application:

  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
  • Temperature compensation (NP0)
  • Coupling
  • Decoupling
  • Bypass
  • Smoothing
  • Filtering
  • Resonant circuit
Technical specifications
Design SMD 0603
Dielectric material X5R
Capacity 680 nF
Length 1.6 mm
max. operating temperature 85 °C
min. operating temperature -55 °C
Rated voltage (DC) 10 V
Tolerance ±20 %
Logistics
Country of origin TW
Customs tariff number 85322400
MSL MSL 1
Original Packaging Reel with 4,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
