885012205037R | Würth Elektronik eiSos

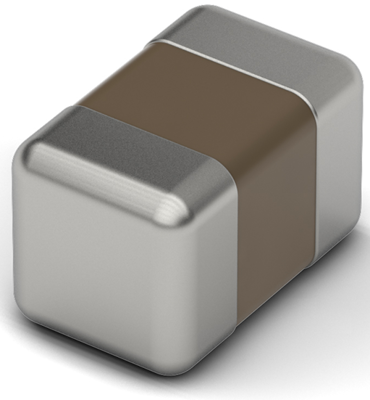

Ceramic capacitor, 100 nF, 16 V (DC), ±10 %, SMD 0402, X7R, 885012205037R
Unit Price (€ / pc.)
0.0155 € *
Available: 49,997 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.02 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0155 €
250 pcs.
0.0143 €
500 pcs.
0.0119 €
1000 pcs.
0.0107 €
250000 pcs.
0.0014 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
- High electrical precision and stability ceramic especially for NP0
- High performance ceramic
- Operating temperature: -55°C to +125°C for NP0 and X7R, -55°C to +85°C for X5R
- Temperature coefficient: ±30 ppm/°C
- Termination: Cu/Ni/Sn
Application:
- Temperature compensation (NP0)
- Coupling
- Decoupling
- Bypass
- Smoothing
- Filtering
- Resonant circuit
Technical specifications
| Design | SMD 0402 | |
| Dielectric material | X7R | |
| Capacity | 100 nF | |
| Length | 1 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 16 V | |
| Tolerance | ±10 % |
Download
Logistics
| Customs tariff number | 85322400 |
| MSL | MSL 1 |
| Original Packaging | Reel with 50,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
