885012206095R | Würth Elektronik eiSos

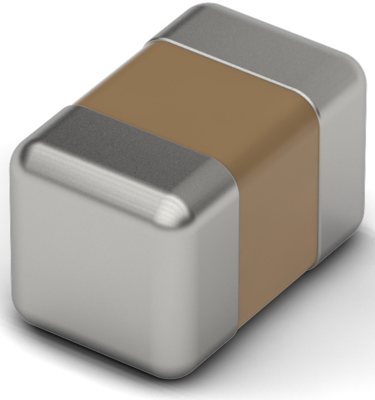

Ceramic capacitor, 100 nF, 50 V (DC), ±10 %, SMD 0603, X7R, 885012206095R
Unit Price (€ / pc.)
0.0512 € *
Available: 14,541 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 22 Weeks **
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0512 €
250 pcs.
0.0452 €
500 pcs.
0.0405 €
1000 pcs.
0.0369 €
75000 pcs.
0.0036 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Ceramic: NP0 (Class I), X5R (Class II), X7R (Class II)
- High electrical precision and stability ceramic especially for NP0
- High performance ceramic
- Operating temperature: -55°C to +125°C for NP0 and X7R, -55°C to +85°C for X5R
- Temperature coefficient: ±30 ppm/°C
- Termination: Cu/Ni/Sn
Application:
- Temperature compensation (NP0)
- Coupling
- Decoupling
- Bypass
- Smoothing
- Filtering
- Resonant circuit
Technical specifications
| Bauform | SMD 0603 | |
| Dielektrikum | X7R | |
| Kapazität | 100 nF | |
| Länge | 1.6 mm | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 50 V | |
| Toleranz | ±10 % |
Download
Logistics
| Zolltarifnummer | 85322400 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 15.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
