60312202114509 | Würth Elektronik eiSos

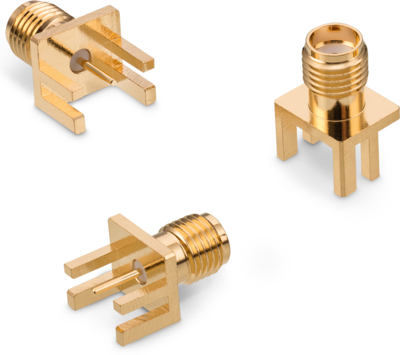

SMA socket 50 Ω, solder connection, straight, 60312202114509

Order No.: 78F5009
EAN: 4099889382242
MPN:
60312202114509
Series: WR-SMA
Würth Elektronik eiSos
60312202114509 Würth Elektronik eiSos Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
9.4010 € *
Available: 60 pcs.
Available in 5 Days: 4,874 pcs.
Leadtime: 13 Weeks **
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4010 €
50 pcs.
8.7227 €
100 pcs.
8.0563 €
180 pcs.
7.3780 €
360 pcs.
6.7116 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • Interface: MIL-STD-348
  • Mating Cycle: 500 Cycles
  • Impedance: 50Ω
  • Insulation Resistance: 5000MΩ(min.)
  • Withstanding Voltage: 1000Vrms(min.)
  • Ingress Protection: None l IP67
  • Mating: Screw (Recommended by torque wrench tool)

Application:

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • Electronic consumers and device
  • Outdoor or humid environment
Technical specifications
Version socket
Design straight
Impedance 50 Ω
Contact connection solder connection
Contact material Beryllium copper
Connector SMA
Logistics
Country of origin TW
Customs tariff number 85366930
MSL MSL 1
Original Packaging Tray with 180 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
