60314202124525 | Würth Elektronik eiSos

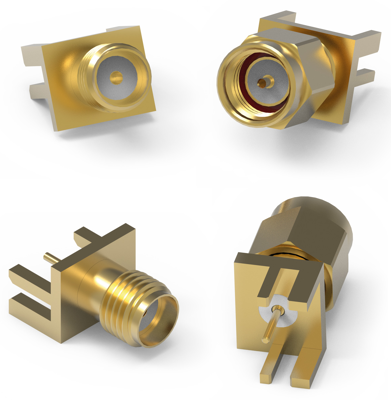

SMA plug 50 Ω, solder connection, straight, 60314202124525
Unit Price (€ / pc.)
13.4113 € *
Available: 30 pcs.
Available in 5 Days: 3,898 pcs.
Leadtime: 13 Weeks **
Total Price:
13.41 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4113 €
10 pcs.
12.8520 €
25 pcs.
11.7334 €
60 pcs.
10.6148 €
180 pcs.
9.4962 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Interface: MIL-STD-348
- Mating Cycle: 500 Cycles
- Impedance: 50Ω
- Insulation Resistance: 5000MΩ(min.)
- Withstanding Voltage: 1000Vrms(min.)
- Ingress Protection: None l IP67
- Mating: Screw (Recommended by torque wrench tool)
Application:
- Network and communications
- RF Test and measurement equipment
- Industrial applications
- Electronic consumers and device
- Outdoor or humid environment
Technical specifications
| Version | plug | |
| Design | straight | |
| Impedance | 50 Ω | |
| Contact connection | solder connection | |
| Contact material | brass | |
| Connector | SMA |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366930 |
| MSL | MSL 1 |
| Original Packaging | Tray with 60 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
