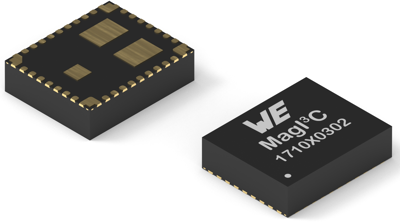

171020302 | Würth Elektronik eiSos
DC/DC converter, 2.95-6 VDC, 7.2 W, 1 output, 0.8-3.6 VDC, 95 % efficiency, 171020302
Unit Price (€ / pc.)
7.7945 € *
Available: 40 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 8 Weeks **
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
50 pcs.
7.5803 €
100 pcs.
7.0091 €
250 pcs.
6.4736 €
500 pcs.
6.0809 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- 2 solder cycles supported
- 3 solder cycles supported
- Leaded package for easy manufacturing and prototyping
- Low conducted and radiated EMI
- Low profile package
- Optional multiple features (adj.frequency, adj.softstart, power good, sequencing, tracking, synchronization to external clock, adjustable undervoltage lockout)
- QFN
- Simple Design
- Support ambient temperatures up to + 105 °C
- TO263-7EP
- Wide input voltage range for input transient capability
- Wide input voltage range QFN41 type
Application:
- Point-of-Load DC-DC applications from 24V, 18V, 15V, 12V, 9V, 5V industrial rails
- Industrial, Test & Measurement, Medical applications
- System power supplies
- I/O interface power supply
- DSPs, FPGAs, MCUs and MPUs supply
- High density distributed power systems
- Telecommunication applications
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 0,8-3,6 VDC | |
| Ausgangsstrom | 2 A | |
| Bauform | QFN-36 | |
| Breite | 9 mm | |
| Eingangsspannungsbereich | 2,95-6 VDC | |
| Höhe | 2.8 mm | |
| Länge | 11 mm | |
| Leistung | 7.2 W | |
| Wirkungsgrad | 95 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85423911 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 250 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
